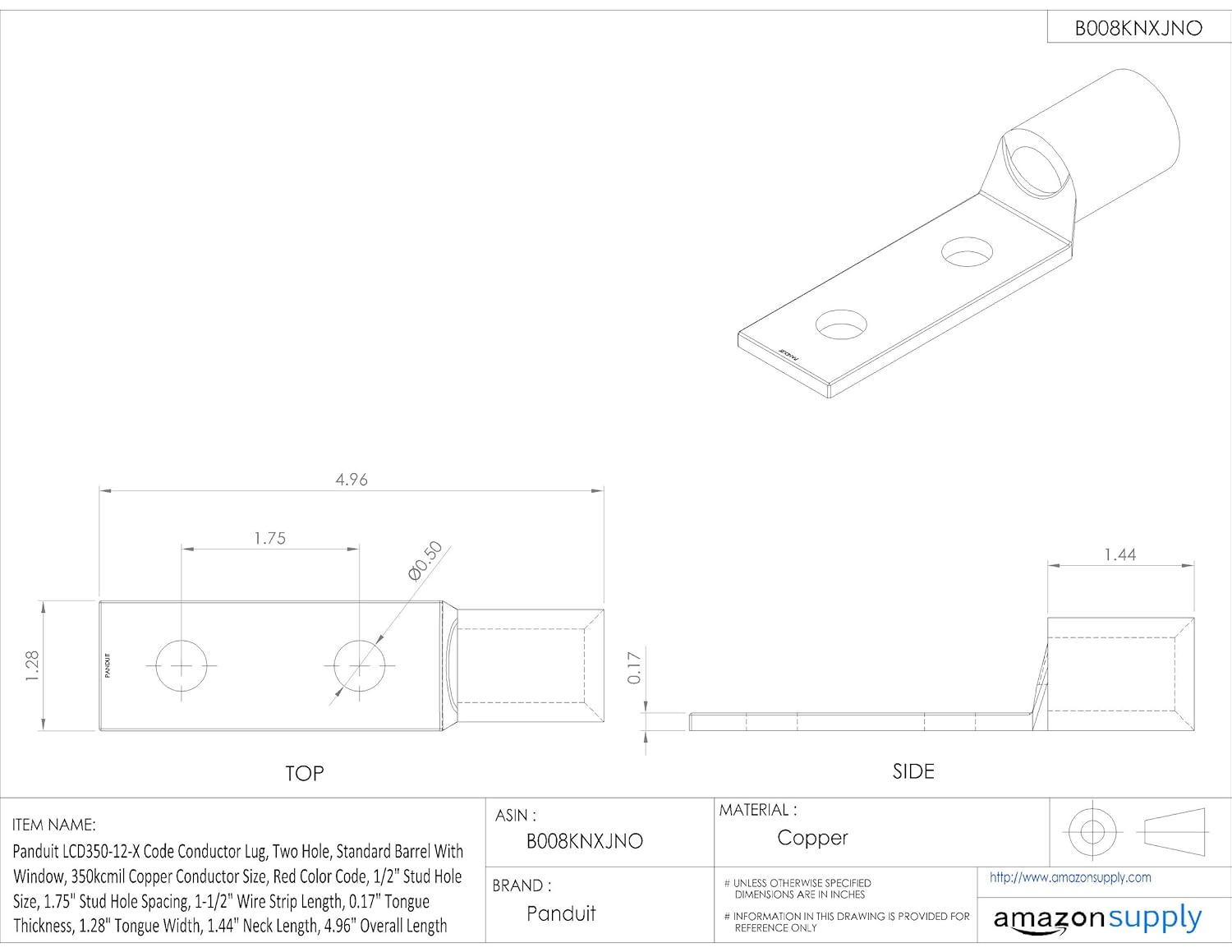

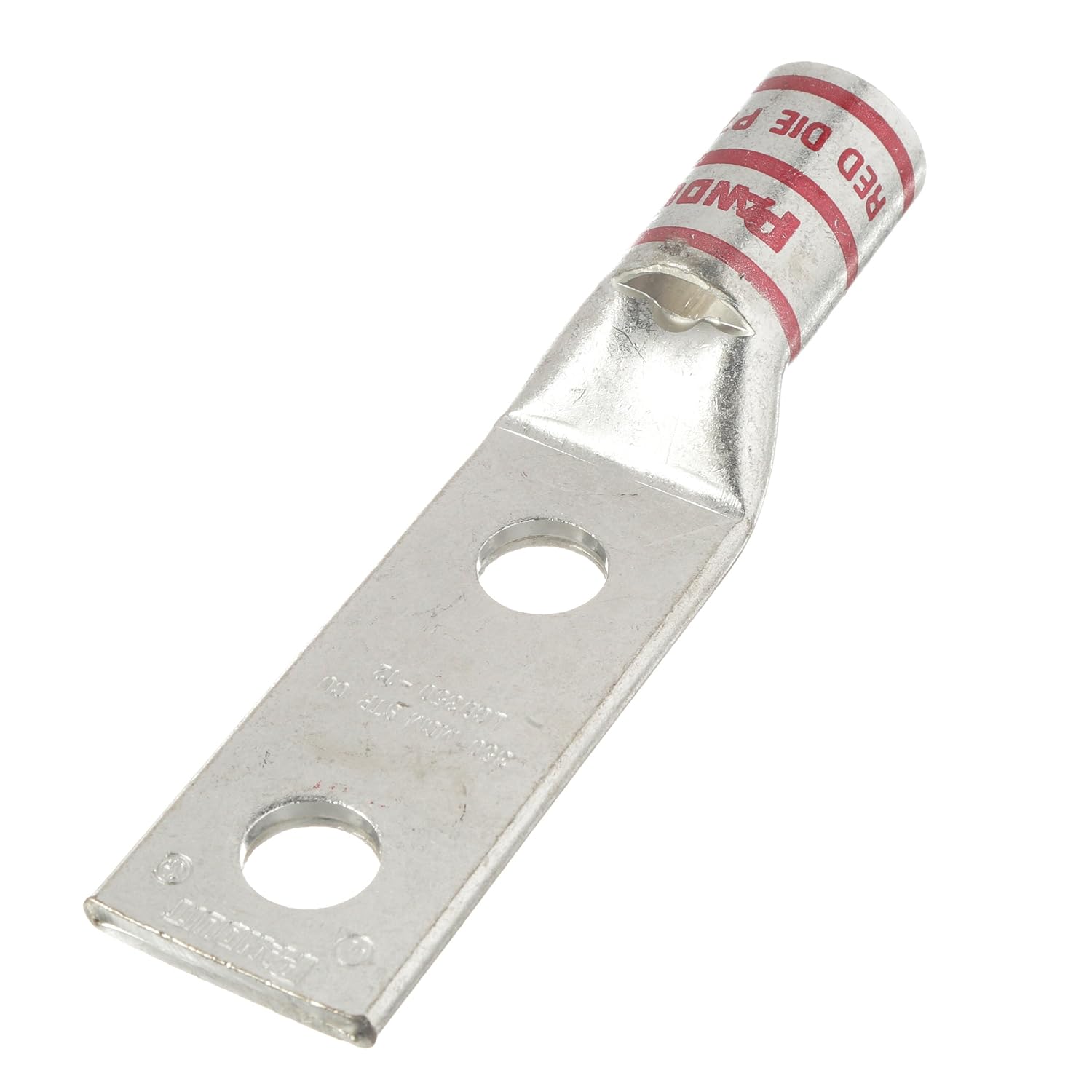

Panduit LCD350-12-X Code Conductor Copper Compression Lug, 2 Hole, 350 kcmil, 1/2-Inch Stud, 1.75-Inch Hole Spacing
4.7 (48 items)
Limited Time Sale$29.03 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221450495 | Release Date | 2026/05/03 | List Price | $19.36 | Model Number | 221450495 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Tin-Plated Copper Compression Connectors - Lugs. Inspection window to visually assure full conductor insertion. Lugs available in 90 and 45 degree bent tongue. Tin. plated to inhibit corrosion. Tested by Telcordia – meets NEBS Level 3. STDLug, 350mcm, 1. 75in space, WDW, PK10.
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV** and temperature rated to 90°C when crimped with Panduit and specified competitor crimping tools and dies
- Certified for wide wire range-taking capability
| UPC | 074983901029 |
|---|---|
| Color | Red |
| Gauge | 350kcmil |
| Model | LCD350-12-X |
| Terminal | Lug |
| Stud Size | 1/2 |
| Brand Name | Panduit |
| Unit Count | 1.0 Count |
| Item Weight | 1.51 Kilograms |
| Part Number | LCD350-12-X |
| Manufacturer | Panduit |
| Material Type | Copper |
| Connector Type | Lug |
| Number of Items | 1 |
| Contact Material | Copper |
| Specification Met | CSA, UL |
| Temperature Rating | 90 degree celsius |
| Included Components | Compression Connectors |
| Global Trade Identification Number | 00074983901029 |
